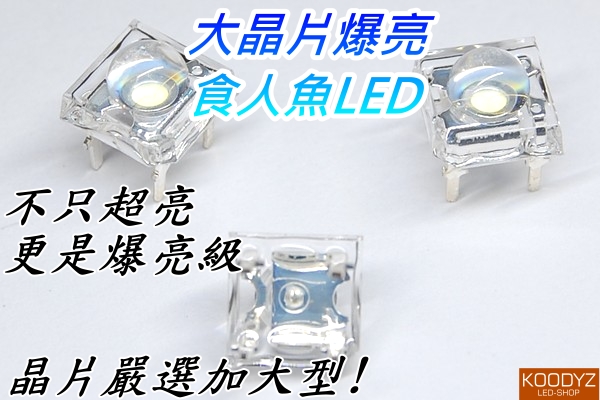

食人魚LED
FLUX LED
電壓:1.8-3.5V
顏色:白/籃/紅/黃
角度:60-130度 車用等級
Parameter |
Symbol |
Value |
Unit |
TestCondition |
||
Min |
Typ |
Max |
||||
Forward Voltage |
Vf |
1.8 |
---- |
3.5 |
V |
If= 3 0mA |
Reverse Current |
Ir |
﹍ |
﹍ |
1 0 |
μA |
Vr=5V |
Viewing angle |
2θ1/2 |
﹍ |
60-80 |
﹍ |
Deg |
If= 3 0mA |
Spectral half bandwidth |
△ λ |
﹍ |
30 |
﹍ |
nm |
If= 3 0mA |


平頭白光 130度 DC Forward Current
=50ma
Part Number:KF-130W
| Parameter | Symbo | Min | Typ | Max | TestCondition |
Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | 3 | 3.65 | 4.5V | 30ma | V |
| Luminous intensity | Iv | 1000 | 1800 | --- | If=30mA | mcd |
| 數量 | 1+ | 10+ | 50+ | 100+ | 250+ | More |
|---|---|---|---|---|---|---|
| 價格 | 10 | 8 | 7.5 | 7 | 6 | ? |
白光80度 DC Forward Current
=35ma
Part Number: KF-80W
| Parameter | Symbo | Min | Typ | Max | TestCondition |
Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | 3 | 3.65 | 4.5V | 30ma | V |
| Luminous intensity | Iv | 1000 | 1700 | --- | If=30mA | mcd |
| 數量 | 1+ | 10+ | 50+ | 100+ | 250+ | More |
|---|---|---|---|---|---|---|
| 價格 | 10 | 8 | 7.5 | 7 | 6 | ? |

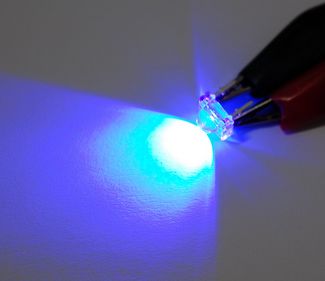

籃光60度 DC Forward Current
=35ma
Part Number: KF-60B
| Parameter | Symbo | Min | Typ | Max | TestCondition |
Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | 3 | 3.65 | 4.5V | 30ma | V |
| Luminous intensity | Iv | 1700 | 3000 | --- | If=30mA | mcd |
| 數量 | 1+ | 10+ | 50+ | 100+ | 250+ | More |
|---|---|---|---|---|---|---|
| 價格 | 10 | 8 | 7.5 | 7 | 6 | ? |
紅光80度
DC Forward Current
=70ma
Part Number: KF-80R
| Parameter | Symbo | Min | Typ | Max | TestCondition |
Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | 1.8 | 2.45 | 2.6 | If=50mA | V |
| Luminous intensity | Iv | 600 | 1300 | --- | If=50mA | mcd |
| 數量 | 1+ | 10+ | 50+ | 100+ | 250+ | More |
|---|---|---|---|---|---|---|
| 價格 | 10 | 7 | 6 | 5 | 4 | ? |
黃光60度 DC Forward Current
=70ma
Part Number: KF-60Y
| Parameter | Symbo | Min | Typ | Max | TestCondition |
Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | 1.8 | 2.25 | 2.7 | If=50mA | V |
| Luminous intensity | Iv | 780 | 1500 | --- | If=50mA | mcd |
| 數量 | 1+ | 10+ | 50+ | 100+ | 250+ | More |
|---|---|---|---|---|---|---|
| 價格 | 10 | 7 | 6 | 5 | 4 | ? |
Operating Temperature -25 ~ +60 ℃
Storage Temperature -40 ~ +100℃
Soldering Temperature 260for5sec △ ℃
![]()
這幾款大角度的FLUX LED最適合設計給車用.優異的廣角設計及
超高的電流輸入使得辨識度大大提升
Applications
室內照明 /車室內燈/ 尾燈 / 方向燈 /定位燈...

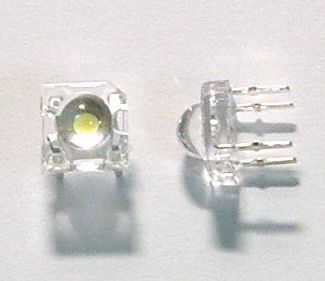

80度白光

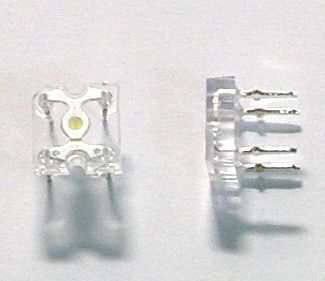

平頭白光

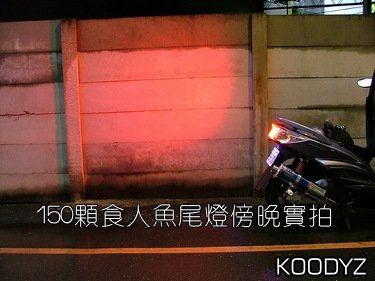

競戰尾燈LED化

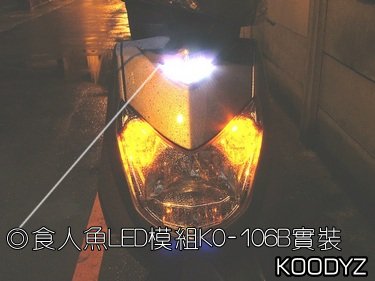

競戰定位燈LED化

紫外線食人魚LED
