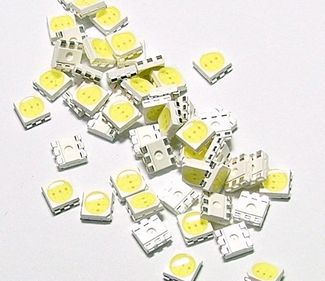

POWER SMD LED Hot!!
高功率SMD(3晶)
電流:90ma(TYP)100ma(MAX0.1ms)
顏色:白光
角度:120度
亮度:
If=60mA
2550mcd(Min)
色溫:6000K白光
Dice:
GaInN
Resin:Epoxy
X=0.28 Y=0.29
RPHS PASS
價格 ASK
NEW PRODUC!
Forward current per dot 30ma
Power dissipation per dot 114mw
Operating temperature range -20 ~+80 ℃
Storage temperature range -20 ~+80 ℃
Peak pulsing current (1/8 duty f=1kHz) 125ma
Forward voltage TYP3.3V MAX3.8V
價格:ASK
1REEL 1000PCS
另有籃光/紅光/黃光 歡迎詢問
