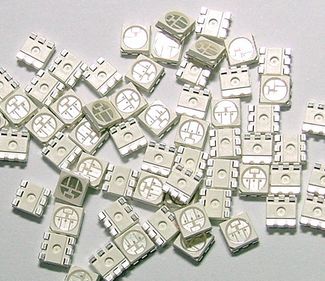

POWER SMD LED Hot!!
高功率SMD(3晶)
電流:90ma(TYP)100ma(MAX0.1ms)
顏色:紅光
角度:120度
亮度:
If=60mA
100mcd(Min) 145mcd(Typ)
波長:640nm(Typ)
Dice:
Al GaIn P
Resin:Epoxy
RPHS PASS
價格 ASK
NEW PRODUC!
Forward current per dot 30ma
Power dissipation per dot 75mw
Operating temperature range -20 ~+80 ℃
Storage temperature range -20 ~+80 ℃
Peak pulsing current (1/8 duty f=1kHz) 125ma
Forward voltage TYP2.0V MAX2.5V
價格:ASK
1REEL 1000PCS
另有籃光/白光/黃光 歡迎詢問
