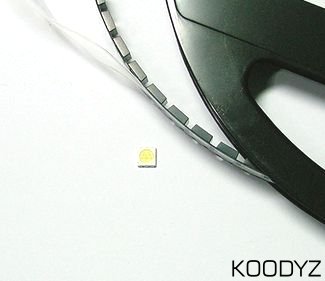

6 chip POWER SMD LED Hot!!
超高功率SMD(6晶)
電流:150ma(TYP)180ma(MAX0.1ms)
顏色:白光
角度:120度
亮度:
If=mA
4900mcd(Min) 10550mcd(Typ)
色溫:9000K
Dice:
InGaN
Resin:Epoxy
RPHS PASS
價格 ASK
NEW PRODUC!

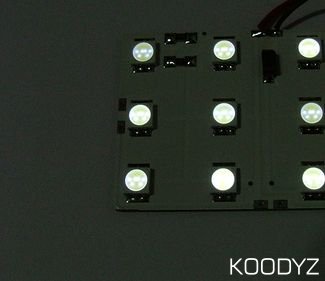

超呼想像的亮度-高科技6晶LED
Item |
Symbol |
Value |
Unit |
Power Dissipation |
PD |
720 |
mW |
DC Forward Current |
IF |
180 |
mA |
Single C hip Pulsed Forward Current |
IFP |
100 * |
mA |
Reverse Voltage |
VR |
5 ▲ |
V |
Operating Temperature |
Topr |
-30 ~ +80 |
℃ |
Storage Temperature |
Tstg |
-40 ~ +100 |
℃ |
Soldering Temperature |
Tsol |
260for10sec △ |
℃ |
Parameter |
Symbol |
Value |
Unit |
Test condition |
||
Min. |
Typ. |
Max. |
||||
Forward Voltage |
V f |
2.8 |
3.2 |
3.8 |
V |
I f =120mA |
Luminous intensity |
I v |
4900 |
10550 |
﹍ |
mcd |
I f =120mA |
Wavelength |
X |
|
0.30 |
﹍ |
﹍ |
I f =120mA |
Y |
|
0.31 |
﹍ |
﹍ |
I f =120mA |
|
Reverse Current |
I r |
﹍ |
﹍ |
1 0 |
μ A |
V r =5V |
Viewing angle |
2 θ 1/2 |
﹍ |
1 20 |
﹍ |
Deg |
I f =120mA |
價格:ASK
1REEL 1000PCS
另有籃光/白光/黃光 歡迎詢問
