940nm IR LED
電壓:1.3-2.2v
電流:50ma
角度: 40度(超廣角不炫光) 15度(遠距離投光)
應用: 監視器補光/紅外線發射
無可視紅點
注意:焊接溫度不能超過260度5秒鐘
Datasheet 內容只有角度不一樣 其他規格全都一樣
價格 10PCS每顆/NT20 100PCS以上每顆NT15
備註 訂購數量最少10PCS
無可視紅點
Download Datashee 請來信索取資料
Absolute maximum ratings (T A =25 ℃ ) |
|||
Parameter |
Symbol |
Value |
Unit |
Power Dissipation |
PD |
120 |
mW |
DC Forward Current |
IF |
50 |
mA |
Pulsed Forward Current |
IFP |
350* |
mA |
Reverse Voltage |
VR |
5 |
V |
Operating Temperature |
Topr |
-25 ~ + 6 0 |
℃ |
Storage Temperature |
Tstg |
-40 ~ +100 |
℃ |
Soldering Temperature |
Tsol |
260for5sec △ |
℃ |
Parameter |
Symbol |
Value |
Unit |
TestCondition |
||
Min |
Typ |
Max |
||||
Forward Voltage |
Vf |
1 |
1.3 |
2.2 |
V |
If=50mA |
Luminous intensity |
Power |
﹍ |
13 |
﹍ |
mw |
If=50mA |
Wavelength |
X(&λp) |
930 |
|
960 |
(nm) |
If=50mA |
y |
﹍ |
﹍ |
﹍ |
﹍ |
If=50mA |
|
Reverse Current |
Ir |
﹍ |
﹍ |
1 0 |
μA |
Vr=5V |

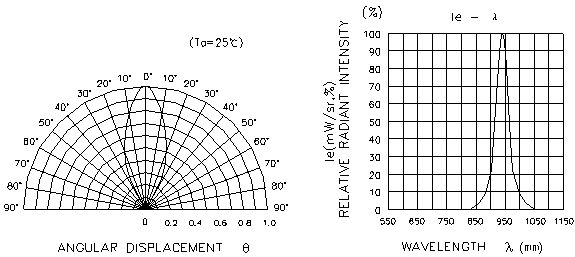

Viewing angle |
2θ1/2 |
﹍ |
45 |
﹍ |
deg |
If=50mA |
Spectral half bandwidth |
△ λ |
﹍ |
25 |
﹍ |
nm |
If=50mA |
