Infrared POWER IR LED 1W 3W 5W 6W IR LED 紅外線 Emitters KOODYZ

流明封裝IR LED

730nm-760nm-810nm-850nm-880nm-900nm-940nm-1000nm-1050nm-1100nm-1200nm-1300nm

各波段銷售

可搭配16mm/20mm鋁基板出貨

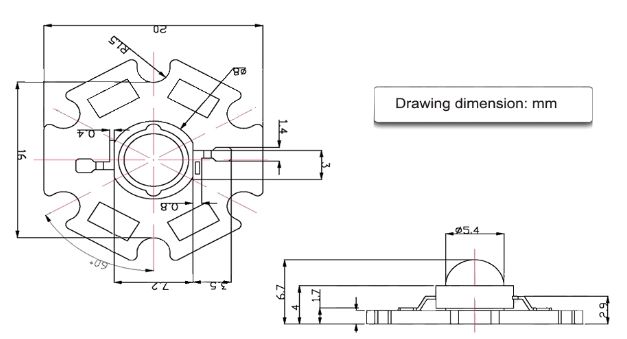

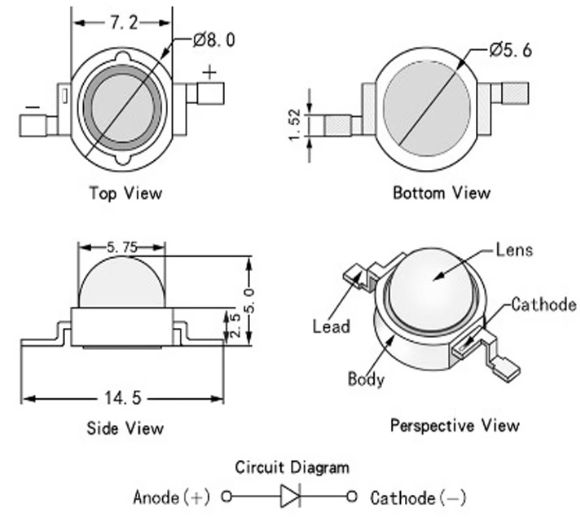

1W IR LED

1W Emitters

P N. : KO-IRE1-1

Peak Wavelength 730nm-1300nm
Forward Voltage 1.5~1.7V
DC Forward Current 350ma (typ)
View Angle 120 deg

價格/1PCS

.量大另外報價

3W IR LED	3W Emitters
	P N. : KO-IRE2-1
Peak Wavelength 730nm-1300nm Forward Voltage 1.5~1.7V DC Forward Current 700ma (typ) View Angle 120 deg	價格/

5W IR LED	5W Emitters
	P N. : KO-IRE3-1
Peak Wavelength 730nm940nm Forward Voltage 1.5~1.7V DC Forward Current 1050ma (typ) View Angle 120 deg	價格/

6W IR LED	6W Emitters
	P N. : KO-IRE4-1
Peak Wavelength 730nm940nm Forward Voltage 1.5~1.7V DC Forward Current 1400ma (typ) View Angle 120 deg	價格/

850nm-940nm波段

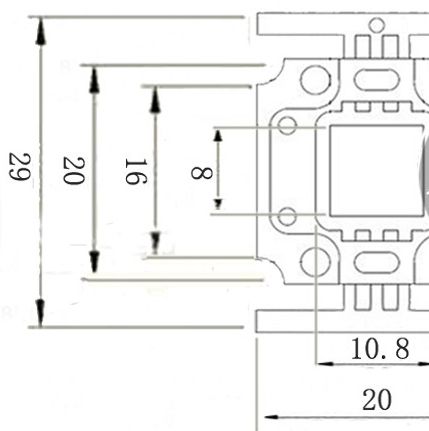

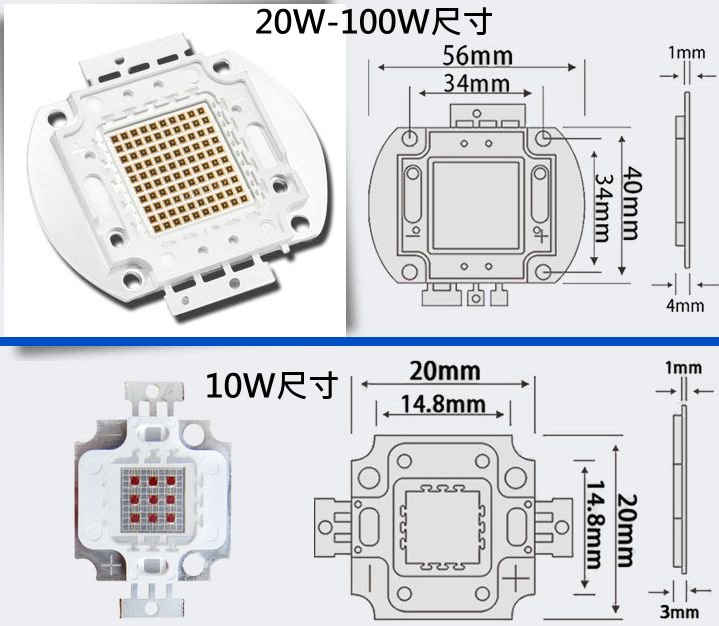

10W COB 3S3P

P N. : KO-IRS5

10W 940nm IR LED

Peak Wavelength 850-940nm
Forward Voltage 3.6V
DC Forward Current 1000ma (typ) 3S3P
View Angle 120 deg

輻射功率：75 0-850MW

價格/

20W COB 10S3P

P N. : KO-IRS6

20W 940nm IR LED

Peak Wavelength 940nm
Forward Voltage 16-18V
DC Forward Current 600-700ma (typ) 10S2P
View Angle 120 deg

輻射功率： 1600-1900MW

價格/

30W COB 10S3P

P N. : KO-IRS7

30W 940nm IR LED

Peak Wavelength 850-940nm
Forward Voltage 14-17V
DC Forward Current 1000ma (typ) 10S3P
View Angle 120 deg

輻射功率：225 0MW

價格/

P N. : KO-IRS8

50W 940nm IR LED

Peak Wavelength 850-940nm
Forward Voltage 14-18V
DC Forward Current 1750ma (typ) 10S5P
View Angle 120 deg

輻射功率： 4000-6000MW

價格/

P N. : KO-IRS9

100W 940nm IR LED

Peak Wavelength 850-940nm
Forward Voltage 14-17V
DC Forward Current 3500ma (typ) 10S10P
View Angle 120 deg

輻射功率：7000MW

價格/
