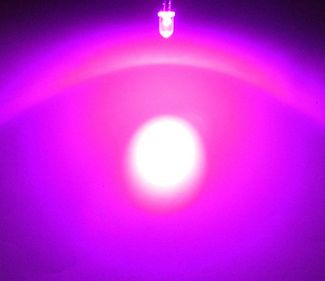

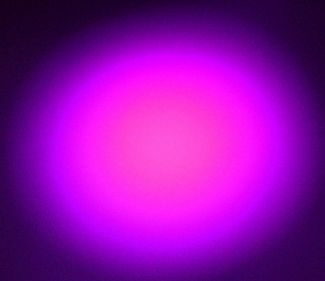

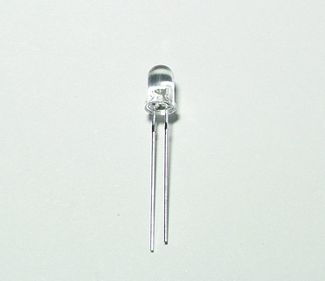

5MM紫光LED
紫光發光二極體
電壓:VF=3.3V
電流:30ma(TYP)100ma(MAX0.1ms)
膠體:EPOXY
顏色:紫光
角度:15度
亮度:1000mcd(TYP)
Dice :
InGaN
RPHS PASS
價格 紫光每顆/NT6
優美紫光.非普通籃光+紅光混色製成
Item |
Symbol |
Value |
Unit |
Power Dissipation |
PD |
120 |
mW |
DC Forward Current |
IF |
30 |
mA |
Pulsed Forward Current |
IFP |
100 * |
mA |
Reverse Voltage |
VR |
5 |
V |
Operating Temperature |
Topr |
-30 ~ +80 ▲ |
℃ |
Storage Temperature |
Tstg |
-40 ~ +100 |
℃ |
Soldering Temperature |
Tsol |
260for5sec △ |
℃ |
Duty 1/10 Pulse Width 0.1ms △ At the position of 4mm from the bottom
of the package ▲ Please refer to the Curve of Forward Current vs. Temperature.
Parameter |
Symbol |
Value |
Unit |
Test condition |
||
Min. |
Typ. |
Max. |
||||
Forward Voltage |
V f |
2.8 |
3. 2 |
3.8 |
V |
I f =20mA |
Luminous intensity |
I v |
600 |
1000 |
﹍ |
mcd |
I f =20mA |
Wavelength |
X |
|
0.1822 |
|
--- |
I f =20mA |
y |
﹍ |
0.0283 |
﹍ |
﹍ |
I f =20mA |
|
Reverse Current |
I r |
﹍ |
﹍ |
1 0 |
μ A |
V r =5V |
Viewing angle |
2 θ 1/2 |
﹍ |
15 |
﹍ |
Deg |
I f =20mA |
Applications
◆汽車/機車指示燈氣氛燈
價格:1PCS/6
