CREE MCPCB

High Power LED MCPCB (CREE/Lumileds/1-5Watt LED)

Customized MCPCB is available. Please provide us with details spec of the MCPCB, we will make the MCPCB for you.

MCPCB requires additional heat sink to dispatch heat into the air. For further information, please refer to our Thermally Conductive Tape & AL Heat Sink.

全系列CREE LED.尺寸皆可以詢問.可散買可大量出貨.需要請發信尋問

XPG/XML/XBD/MKR/MTG/

XQE/XHP35 50 70

8/12/14/15/16/20/25/32mm

	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XLamp	NTD/1PCS 24
	Dimensions : 16mm (D) x 0.6mm (T) Suitable CREE XLamp/Lumileds Luxeon/ProLight For 1W/3W/5W LED	NTD/1PCS 17

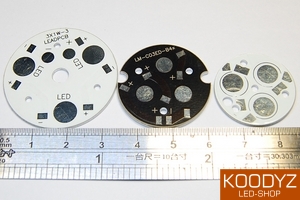

	Dimensions : 43mm (D) x 1.6mm (T) Suitable CREE XLamp/Lumileds Luxeon/ProLight For 1W/3W/5W LED 3串聯	NTD/1PCS 59
	Dimensions : 62mm (D) x 2.0mm (T) Suitable CREE XLamp/Lumileds Luxeon/ProLight For 1W/3W/5W LED 3串聯	NTD/1PCS 109
	Dimensions : 100mm (L) x 25mm(W) x 2.0mm (T) Suitable CREE XLamp/Lumileds Luxeon/ProLight For 1W/3W/5W LED 3串聯	NTD/1PCS 109
	Dimensions : 150mm (L) x 20mm(W) x 2.0mm (T) Suitable CREE XLamp/Lumileds Luxeon/ProLight For 1W/3W/5W LED 可跳接成3串或6串聯	NTD/1PCS 148 HOT!
	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XLamp	NTD/1PCS 20

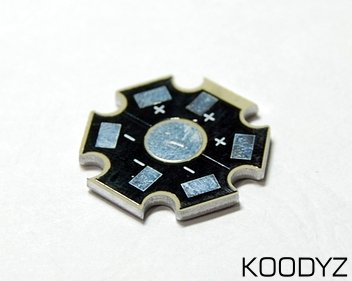

	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XPG/35 35 LED專用	噴錫版NTD/1PCS 20

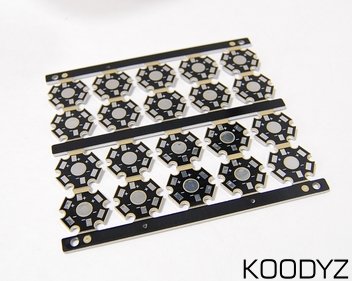

	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XPG/35 35 LED專用	噴錫版16連板NTD/1PCS 272
	Dimensions : 20mm (D) x 1.6mm (T) For 1W/3W/5W LED	一般鋁基板 NTD/1PCS 17
	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XPG/35 35 LED專用	噴錫版NTD/1PCS 20
	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XPG/35 35 LED專用	MCE 4獨立基板 NTD/1PCS 20
	Dimensions : 20mm (D) x 1.6mm (T) Suitable NICHIA 183 LED專用	NICHIA 183 NTD/1PCS 20
	Dimensions : 20mm (D) x 1.6mm (T) Suitable CREE XM-L LED專用	CREE XM-L NTD/1PCS 20
	Dimensions : 16mm (D) x 1.6mm (T) Suitable CREE XR-E LED專用	CREE XR-E NTD/1PCS 20
	Dimensions : 28mm (D) x 1.6mm (T) Suitable EDISON ProLight For 1W/3W/5W LED 3串聯	EDISON 1W NTD/1PCS 40
	Dimensions : 35mm (D) x 1.15mm (T) Suitable EDISON ProLight For 1W/3W/5W LED 3串聯	EDISON 1W NTD/1PCS 38
	Dimensions : 24mm (D) x 1.1mm (T) Suitable EDISON ProLight For 1W/3W/5W LED 3串聯	EDISON 1W NTD/1PCS 32

	Dimensions : 20mm (D) x 1.6mm (T) For 1W/3W/5W LED	鋁基板(20連片) NTD/1PCS 280
	Dimensions : 31.1mm (D) x 1.66mm (T) For 1W/3W/5W LED	白3連發鋁基板小 NTD/1PCS 40

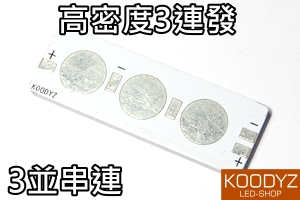

	Dimensions : mm (D) x mm (T) For 1W/3W/5W LED 更正:是3串聯	高密度3連發 NTD/1PCS 60

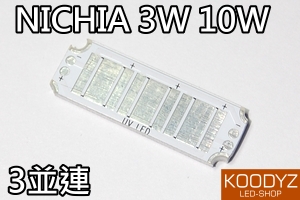

	Dimensions : mm (D) x mm (T) For 日亞UVLED 3W 10W	日亞UVLED專用 NTD/1PCS 400

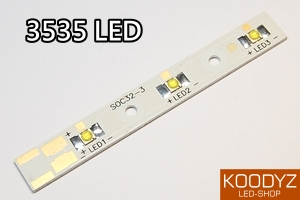

	Dimensions : 62mm (D) x10mmx 1.1mm (T) Suitable CREE 3535 LED 鍍金版	白3連發鋁3535基板 NTD/1PCS 40
	Dimensions : 62mm (D) x10mmx 1.1mm (T) Suitable CREE 3535 LED 15W Moudle 鍍金版	XPG3串聯基板模組 NTD/1PCS 685
	Dimensions : 62mm (D) x10mmx 1.1mm (T) Suitable VisEra 3535 LED 9W Moudle 9.9v/700ma 使用使用采鈺矽基板封裝技術鍍金版	XPG3串聯基板模組 NTD/1PCS 385

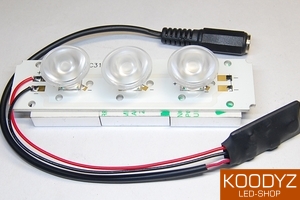

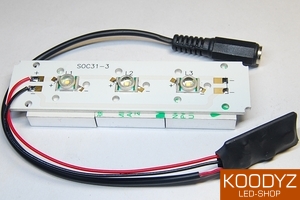

	Dimensions : 100mm (L) x 25mm(W) x 2.0mm (T) Suitable CREE XR-E Q5 LED 15W Moudle 鍍金版	XR-E Q5 3串聯基板模組 NTD/1PCS 625(不含散熱片)
	Dimensions : 100mm (L) x 25mm(W) x 2.0mm (T) Suitable CREE XR-E Q5 LED 15W Moudle 鍍金版	XR-E Q5 3串聯基板模組 NTD/1PCS 700 (15/30/60度透鏡任選3顆.不含散熱片)
		Osram DRAGON NTD/1PCS
		XRE 2LED基板 NTD/1PCS
		EDISON 1W NTD/1PCS

		XB-D NTD/1PCS

		XB-D 20連板 NTD/1PCS
		XRE 9LED基板 NTD/1PCS
		XRE 6LED基板 NTD/1PCS
		XRE XPG 6LED基板 NTD/1PCS
		EDISON 6LED基板 NTD/1PCS
		5630 21LED基板 NTD/1PCS
		EDISON 6LED長基板 NTD/1PCS
全系列CREE LED.尺寸皆可以詢問 XPG/XML/XBD/MKR/MTG/ XQE/XHP35 50 70 8/12/14/15/16/20/25/32mm
