850nm FLUX IR LED
電壓:1.5v
電流:50ma

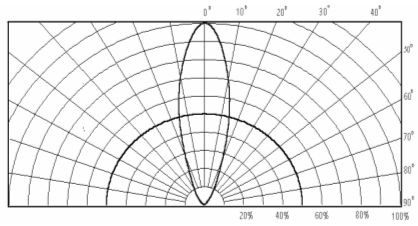

角度: 25度
應用: 監視器補光/紅外線發射
有可視紅點
注意:焊接溫度不能超過260度5秒鐘
價格 10PCS每顆/NT10 100PCS以上每顆NT8
備註 訂購數量最少10PCS
有可視紅點
Download Datasheet 請來信索取資料
Parameter |
Symbol |
Value |
Unit |
||||||
Power Dissipation |
PD |
120 |
mW |
||||||
DC Forward Current |
IF |
50 |
mA |
||||||
Pulsed Forward Current |
IFP |
600* |
mA |
||||||
Reverse Voltage |
VR |
5 |
V |
||||||
Operating Temperature |
Topr |
-25 ~ +60 |
℃ |
||||||
Storage Temperature |
Tstg |
-40 ~ +100 |
℃ |
||||||
Soldering Temperature |
Tsol |
260for5sec △ |
℃ |
||||||
*Duty 1/10 Pulse Width 0.1ms △ At the position of 4mm from the bottom of the package |
|||||||||
Electro-optical characteristics (T A =25 ℃ ) |
|||||||||
Parameter |
Symbol |
Value |
Unit |
TestCondition |
|||||
Min |
Typ |
Max |
|||||||
Forward Voltage |
Vf |
﹍ |
1.5 |
﹍ |
V |
If=50mA |
|||
Luminous intensity |
Power |
﹍ |
15 |
﹍ |
mw |
If=50mA |
|||

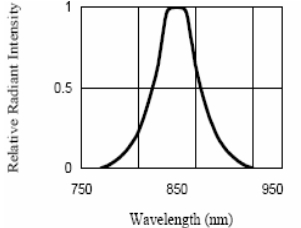

Wavelength |
X(&λd) |
﹍ |
850 |
﹍ |
(nm) |
If=50mA |
|||
