Infrared POWER IR LED 1W 3W 5W 6W IR LED 紅外線 Emitters KOODYZ

0.3W-3W全規格

高功率3535 IR LED 各波段皆有銷售.交貨正常.規格書來信索取.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

傳統流明封裝

1W IR LED

1W Emitters

P N. : KO-IRE1

Peak Wavelength 850nm
Forward Voltage 1.5~1.7V
DC Forward Current 350ma (typ)
View Angle 120 deg

價格/1PCS

.量大另外報價

3W IR LED	3W Emitters
	P N. : KO-IRE2
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 700ma (typ) View Angle 120 deg	價格/

5W IR LED	5W Emitters
	P N. : KO-IRE3
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1050ma (typ) View Angle 120 deg	價格/

6W IR LED	6W Emitters
	P N. : KO-IRE4
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1400ma (typ) View Angle 120 deg	價格/

1W IR LED	1W Emitters+16mm鋁基板
	P N. : KO-IRC1
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 350ma (typ) View Angle 120 deg	價格/

3W IR LED	3W Emitters+16mm鋁基板
	P N. : KO-IRC2
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 700ma (typ) View Angle 120 deg	價格/

5W IR LED	5W Emitters+16mm鋁基板
	P N. : KO-IRC3
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1050ma (typ) View Angle 120 deg	價格/

6W IR LED	6W Emitters+16mm鋁基板
	P N. : KO-IRC4
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1400ma (typ) View Angle 120 deg	價格/

1W IR LED	1W Emitters+20mm鋁基板
	P N. : KO-IRS1
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 350ma (typ) View Angle 120 deg	價格/

3W IR LED	3W Emitters+20mm鋁基板
	P N. : KO-IRS2
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 700ma (typ) View Angle 120 deg	價格/

5W IR LED	5W Emitters+20mm鋁基板
	P N. : KO-IRS3
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1050ma (typ) View Angle 120 deg	價格/

6W IR LED	6W Emitters+20mm鋁基板
	P N. : KO-IRS4
Peak Wavelength 850nm Forward Voltage 1.5~1.7V DC Forward Current 1400ma (typ) View Angle 120 deg	價格/

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

集成COB封裝

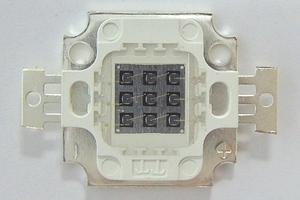

10W COB 3S3P

P N. : KO-IRS6

10W 850nm IR LED

Peak Wavelength 850nm
Forward Voltage 5-6V
DC Forward Current 1000ma (typ) 3S3P
View Angle 120 deg

輻射功率：900-1000MW

價格/520

輻射功率： 1600-1900MW

價格/

20W 940nm IR LED

Peak Wavelength 940nm
Forward Voltage 16-18V
DC Forward Current 600-700ma (typ) 10S2P
View Angle 120 deg

輻射功S率： 1600-1900MW

價格/

30W COB 10S3P

P N. : KO-IRS8

30W 940nm IR LED

Peak Wavelength 940nm
Forward Voltage 14-17V
DC Forward Current 1000ma (typ) 10S3P
View Angle 120 deg

輻射功率：2700MW

價格/

50W COB 10S10P

P N. : KO-IRS10

50W 940nm IR LED

Peak Wavelength 940nm
Forward Voltage 14-18V
DC Forward Current 1750ma (typ) 10S5P
View Angle 120 deg

輻射功率：4500MW

價格/

點圖進入網頁

100W COB 10S10P

P N. : KO-IRS12

100W 940nm IR LED
100W 850nm IR LED

Peak Wavelength 850nm
Forward Voltage 14-17V
DC Forward Current 3500ma (typ) 10S10P
View Angle 120 deg

輻射功率：7000MW

價格/

特殊波長IR LED

3W IR LED

3W Emitters

P N. : KO-3W1050nm

Peak Wavelength 1050nm
Forward Voltage 1.2V~1.5V
DC Forward Current 700ma (typ)
View Angle 120 deg

價格604 /1PCS

.量大另外報價

3W IR LED	3W Emitters+20mm鋁基板
	P N. : KO-3W1050nmST
Peak Wavelength 1050nm Forward Voltage 1.2V~1.5V DC Forward Current 700ma (typ) View Angle 120 deg	價格624 /1PCS

3W IR LED

3W Emitters

P N. : KO-3W1000nm

Peak Wavelength 1000nm
Forward Voltage 1.2V~1.5V
DC Forward Current 700ma (typ)
View Angle 120 deg

價格484 /1PCS

.量大另外報價

3W IR LED	3W Emitters+20mm鋁基板
	P N. : KO-3W1000nmST
Peak Wavelength 1000nm Forward Voltage 1.2V~1.5V DC Forward Current 700ma (typ) View Angle 120 deg	價格504 /1PCS

3W IR LED	3W Emitters
	P N. : KO-3W1100nm
Peak Wavelength 1100nm Forward Voltage 1.2V~1.5V DC Forward Current 700ma (typ) View Angle 120 deg	價格 /1PCS

3W IR LED

3W Emitters+20mm鋁基板

P N. : KO-3W1100nmST

Peak Wavelength 1100nm
Forward Voltage 1.2V~1.5V
DC Forward Current 700ma (typ)
View Angle 120 deg

價格 /1PCS

.量大另外報價
